BRAND	Calectro
Product	CPS-A

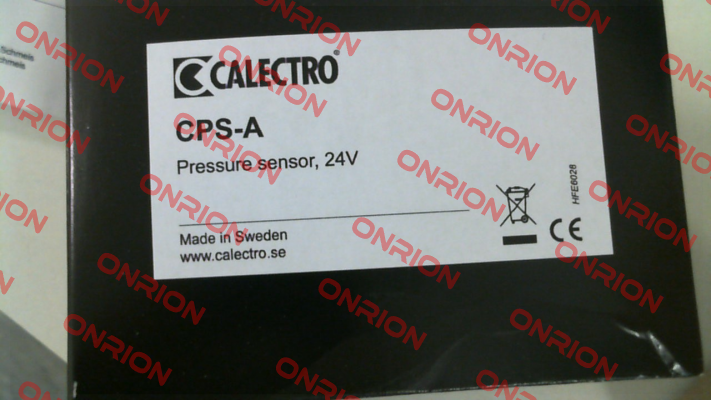

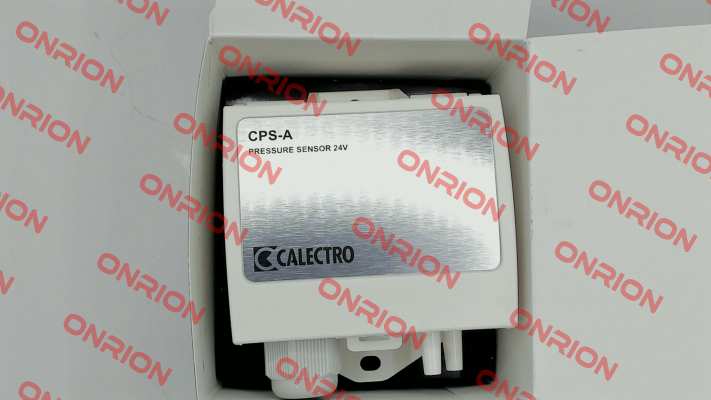

Description	Differential pressure transmitter -50 - +3500 Pa
Internal code	ONR3306403
Weight	0.16
Custom code	90321020

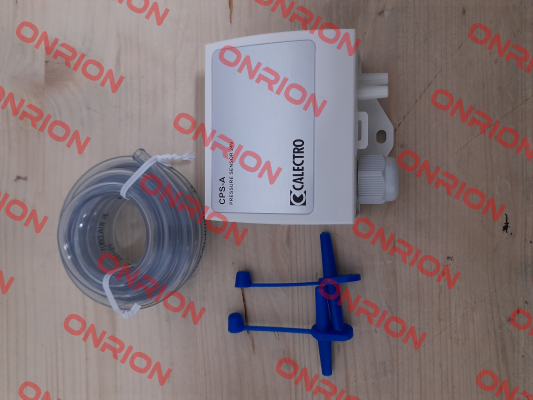

Technical specification	CPS-A pressure sensor has a built-in differential pressure element, which helps to achieve high accuracy and Linearity is temperature-compensated. With a DIP switch, the desired pressure measurement range is discontinued. The output signal (0-10V or 4-20 mA) and the desired signal attenuation are also provided with set to the DIP switch. Housing terminal and cable connection (with pre-assembled M16 screws) can be removed, which simplifies installation. The housing cover has on the top edge a hinge and at the bottom a snap lock with locking hook, which closes the lid in When folded up, keeps it open. Supply voltage: 24V AC/DC ± 10% Power consumption: approx. 31 mA output signal: 0-10V/4-20 mA Pressure ranges: -50-50/0-100/-300/-500/-700/-1000/-200/1-3500 Pa Accuracy: Usually ± 1% of measured pressure Green LED: Lights continuously: normal operation Flashes: zero pressure calibration Ambient temperature: -20 to +50°C Cable inputs: 1xM16, 5-10 mm cable 2 m hose and 2 nipples Dimensions (WxHxD): 78x90x40 mm Protection class: IP54

Please Contact Us to Order to offer competitive prices and delivery time for Calectro - CPS-A Differential pressure transmitter -50 - +3500 Pa number, also you may ask some other model number is well. We can offer competitive price, and delivery time with wide products distribution network in Chile Industrial products Market.
